by Martin J. Powell

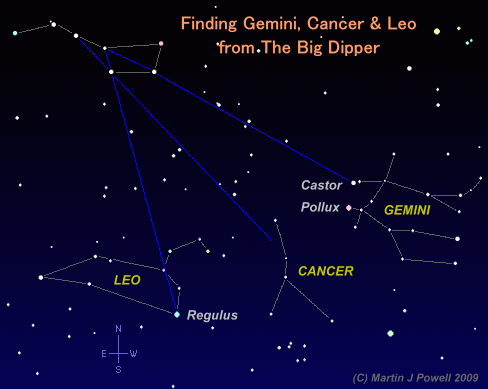

Finding Gemini, Cancer and Leo from The Big Dipper. Click for full-size image, 26 KB (Copyright Martin J Powell, 2009)The well-known asterism (star group) known as The Big Dipper (or The Plough) in Ursa Major (The Great Bear) can be used as a starting point to finding Gemini, Cancer and Leo in the night sky (provided these constellations are above the observer's horizon at the required time). Click on the accompanying thumbnail to see the full-size diagram (26 KB).

To find Leo, project the line between the stars Megrez (Greek letter Delta Ursae Majoris) and Phekda (Greek letter Gamma Ursae Majoris) in a Southward direction until you reach the bright star Regulus (Greek letter Alpha Leonis) as indicated in the animation.

To find Gemini, project the diagonal line between Megrez and Merak (Greek letter Beta Ursae Majoris) towards the South-west until you come across the two leading stars of The Twins, namely Castor (Greek letter Beta Geminorum) and Pollux (Greek letter Beta Geminorum).

Cancer can be found using the The Big Dipper or, alternatively, by using Gemini and Leo. Project the line formed by Alioth (Greek letter Epsilon Ursae Majoris) and Phekda towards the South-west, into the 'dark' region of sky between Gemini and Leo; Cancer is located about half-way between Castor and Regulus.

Note that this method primarily applies to Northern hemisphere observers. Southern hemisphere observers can only use this method if they are situated North of latitude 28° South (The Big Dipper is not wholly visible at latitudes further South than this).

The lines pointing to Gemini, Cancer and Leo from The Big Dipper can also be seen in the form of an animation (1.2 MB).
