Uranus Conjunctions with other Planets, 2011-18

Pisces (Constellation Photo)


 The Position of Uranus in the Night Sky:

2006 to 2018

 by Martin J. Powell

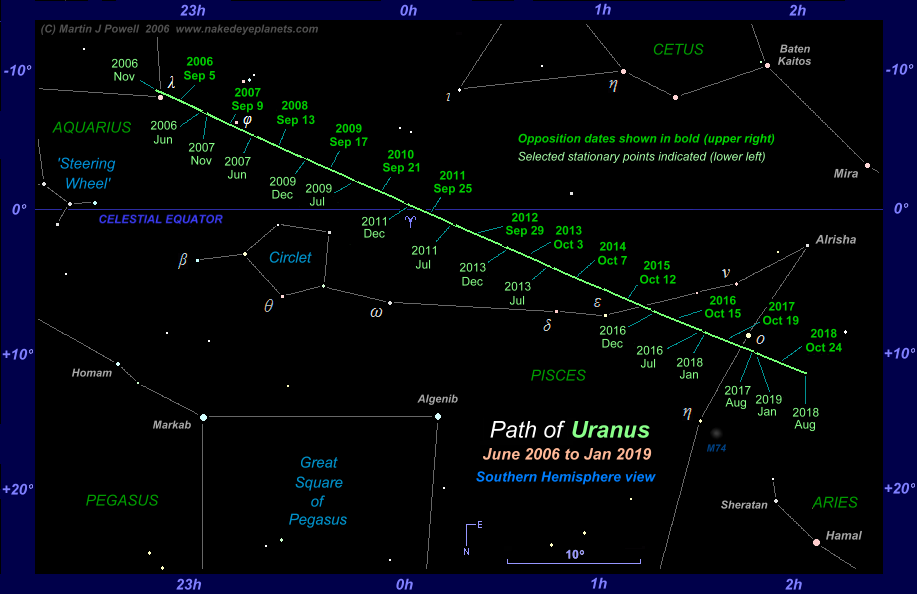

Star map showing the path of Uranus through Aquarius and Pisces from June 2006 to January 2019 (click for full-size image, 86 KB)

Star map showing the path of Uranus against the background stars of Aquarius and Pisces from June 2006 to January 2019 (click for full-size image, 86 KB). Positions are marked for each opposition date and selectively for Eastern and Western stationary points. In this diagram, the marked stationary points are paired for each loop, e.g. the '2009 Jul' and '2009 Dec' stationary points occur in the same loop, the planet passing opposition in between, i.e. at '2009 Sep 17' (the planet will always be moving retrograde - East to West - when it passes opposition). Uranus described a series of shallow, Southward-facing loops because the planet was South of the ecliptic (by less than 1º) throughout the period shown on the chart (the individual loops are not discernible in this chart because of the scale of the map; instead, each loop appears as a thickened line). Note that because of the distance of Uranus from the Earth, the angular width of each loop (about 3º.9 from Eastern to Western stationary points) is such that the loops have only a narrow gap between them.

The star map applies to observers in the Northern hemisphere (i.e. North is up); for the Southern hemisphere view, click here (90 KB). The faintest stars shown on the map have an apparent magnitude of about +4.9. Printer-friendly versions of this chart are available for Northern (37 KB) and Southern hemisphere (38 KB) views. Astronomical co-ordinates of Right Ascension (longitude, measured Eastwards in hrs:mins from the First Point of Aries) and Declination (latitude, measured in degrees North or South of the celestial equator) are marked around the border of the chart.

After having spent a total of 6¾ years positioned in Aquarius, the Water Carrier, Uranus began its passage through Pisces, the Fishes - one of the zodiac's faintest constellations - in March 2009. The planet crossed the celestial equator in Pisces in April 2011 (heading North-eastwards and moving direct), in October 2011 (moving retrograde and temporarily heading South-westwards) and again in January 2012 (resuming North-easterly motion, moving direct).

Uranus and its system of rings imaged by NASA's Voyager 2 spacecraft in 1986. Click for larger image, 7 KB (Image: NASA)Uranus imaged by NASA's Voyager 2 spacecraft during its January 1986 flyby (click for larger image, 7 KB). The planet's rings, discovered in 1977, are too faint to be seen with Earthbound telescopes (Image: NASA)

During the 2012-13 period the planet made a few brief exits from the zodiac as it traversed the North-western corner of Cetus, the Whale, before continuing on its way through Pisces. Uranus entered Aries, the Ram, in April 2018, having thus far spent a period of almost 9½ years in Pisces.

Uranus reaches opposition to the Sun (when it is closest to the Earth and brightest in the sky for the year) every 369.6 days on average, i.e. about 4 days later in each successive year. The opposition magnitude across the period of the star map is +5.7. In any given year the apparent magnitude of the planet varies little, reducing by about 0.2 magnitudes from opposition to superior conjunction.

The apparent diameter of the planet (its angular size when seen from the Earth) at opposition throughout the period was from 3".9 (3.9 arcseconds, where 1 arcsecond = 1/3600th of a degree) in 2006, reducing to 3".7 in 2018.

In December 2007 Uranus passed its Northern hemisphere's Vernal equinox point in its orbit, at which time the planet's rings were positioned edge-on to the Earth.

In February 2009 Uranus reached aphelion (its furthest point from the Sun) at 20.1 Astronomical Units (3,000 million kms or 1.87 thousand million miles) and consequently was at its most poorly-placed orbital position for observation from the Earth.

In 2010, Uranus reached opposition on the same day as Jupiter (September 21st) with just five hours between their opposition times; Uranus was then positioned 0º.8 to the North of the Giant Planet. The two planets also underwent a triple conjunction from 2010-11, passing each other in the sky on three occasions. An animation showing the two planets' motions during this period can be seen here.

 [Terms in yellow italics are explained in greater detail in an associated article describing planetary movements in the night sky.]

^ Back to Top of Page


Uranus Conjunctions with other Planets,

2011-2018

Between 2011 and 2018 there were thirteen planetary conjunctions involving Uranus. In all but one of these events the solar elongation was less than 47°, the blue-green planet being close to the naked-eye limiting magnitude in all cases.

Uranus' most interesting conjunctions take place when the planet is within a few months of opposition, at which times they involve the much brighter planets Mars, Jupiter or Saturn; these events are however very rare. The most recent conjunction of note which involved these planets was with Jupiter on January 2nd 2011 - the last of three conjunctions which took place between the two planets during the 2010-11 observing season (for more details, see here).

Because Uranus was positioned in central and Eastern Pisces during the period in question, i.e. within a 10° declination band to the North of the celestial equator, conjunctions during this time were favourable to Northern and Southern hemispheres in roughly equal measure. Owing to the angle that the ecliptic presents to the local horizon along this section of the zodiac, evening conjunctions favoured Northern hemisphere observers whilst morning conjunctions favoured Southern hemisphere observers.

The following table lists the conjunctions involving Uranus which took place between 2011 and 2018 at solar elongations of greater than 20°. In several cases, other planets were also in the vicinity and these are detailed. Note that, because some of the conjunctions occurred in twilight, the planets involved may not have appeared as bright as their listed magnitude suggests.

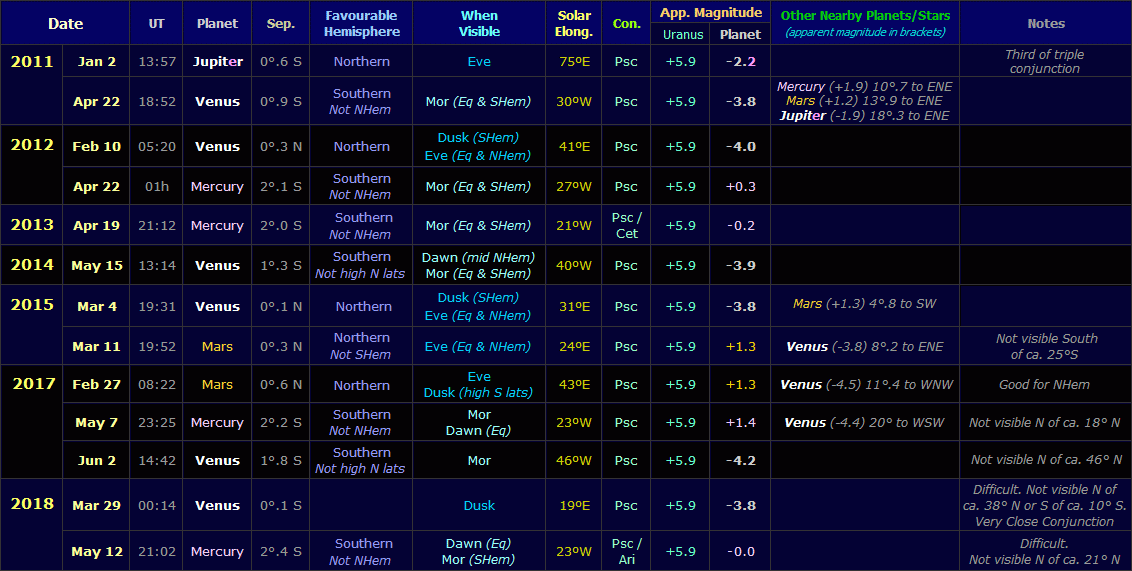

Table listing Uranus conjunctions with other planets from 2011 to 2018. Click for full-size image, 64 KB (Copyright Martin J Powell, 2011/14)

Uranus onjunctions with other planets from 2011 to 2018 (click on thumbnail for full-size table, 64 KB) Note that there were no observable planetary conjunctions involving Uranus during 2016. The column headed 'UT' is the Universal Time (equivalent to GMT) of the conjunction (in hrs : mins). The separation (column 'Sep') is the angular distance between the two planets, measured relative to Uranus, e.g. on 2015 Mar 4, Venus was positioned 0°.1 North of Uranus at the time shown. The 'Favourable Hemisphere' column shows the Hemisphere in which the conjunction was best observed. The expression 'Not high N Lats' indicates that observers at latitudes further North than about 50°N would have found the conjunction difficult or impossible to observe because of low altitude and/or bright twilight.

In the 'When Visible' column, a distinction is made between Dawn/Morning visibility and Dusk/Evening visibility; the terms Dawn/Dusk refer specifically to the twilight period before sunrise/after sunset, whilst the terms Evening/Morning refer to the period after darkness falls/before twilight begins (some conjunctions take place in darkness, others do not, depending upon latitude). The 'Con' column shows the constellation in which the planets were positioned at the time of the conjunction.

To find the direction in which the conjunctions were seen on any of the dates in the table, note down the constellation in which the planets were located ('Con' column) on the required date and find the constellation's rising direction (for Dawn/Morning conjunctions) or setting direction (for Dusk/Evening conjunctions) for your particular latitude in the Rise-Set direction table.

Although any given conjunction takes place at a particular instant in time, it is worth pointing out that, because of the planets' relatively slow daily motions, such events are interesting to observe for several days both before and after the actual conjunction date.

There are in fact two methods of defining a planetary conjunction date: one is measured in Right Ascension (i.e. perpendicular to the celestial equator) and the other is measured along the ecliptic, which is inclined at 23½° to the Earth's equatorial plane (this is due to the tilt of the Earth's axis in space). An animation showing how conjunction dates are determined by each method can be found on the aforementioned Jupiter-Uranus 2010-11 triple conjunction page. Although conjunctions measured along the ecliptic can be significantly closer, the Right Ascension method is the more commonly used, and it is the one which is adopted here.

^ Back to Top of Page

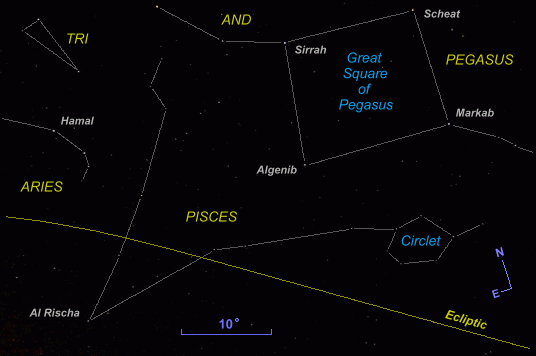

Photograph showing the constellations of Pisces, Aries, Triangulum and the Great Square of Pegasus. Click for full-size photo, 56 KB (Copyright Martin J Powell, 2005)Pisces, Aries & the Great Square of Pegasus  A photograph showing the region of the night sky through which Uranus passed during the period of the star chart (click on thumbnail for full-size photo, 56 KB). Stars in the photograph can be seen down to about magnitude +6.5. An annotated version of the photograph can be seen here (14 KB).
